Product Introduction

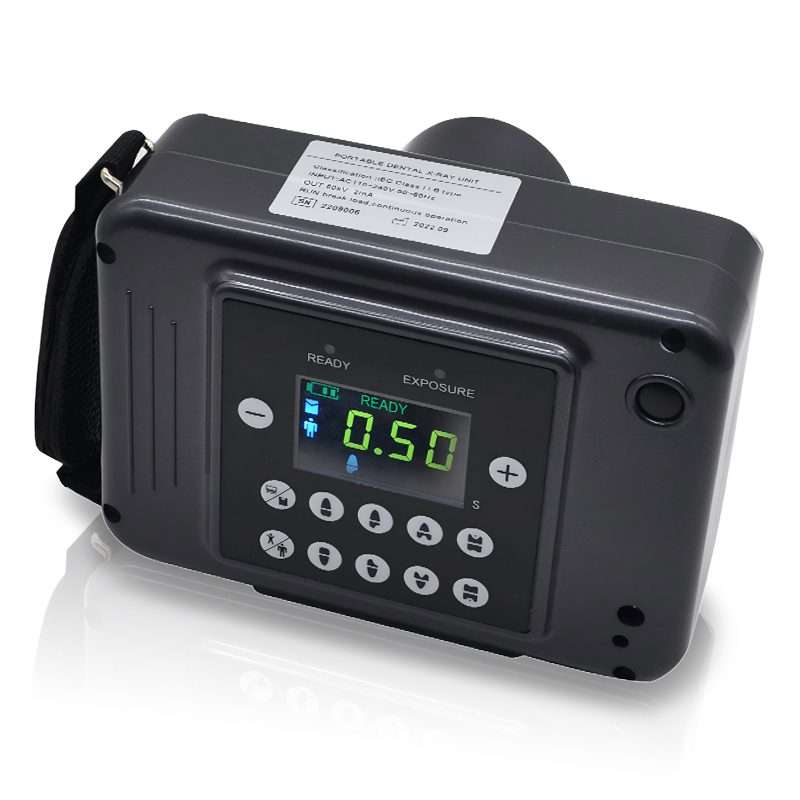

RC-C28A
Portable Dental X-ray unit
The device is DC high frequency portable x ray unit,small,light and nearly no radiation.There are manual buttons installed on the surface of shell,operate easily.All of the compones are installed in the central PC board,insulation vacuum and sealed stereotype protection make its brilliant features.
The unit mainly suitable for oral pretreatment diagnosis of internal organization structure and root depth and so on,is indispensable in daily life clinic,especially for dental implant surgery.The battery is durability,it can take about five hundred images after full charged,and it can be charged and discharged for one thousand ties in its life.It can be connected with intra-oral digital x-ray imaging system.
Tube Voltage: | 60Kv |
Tube Current:2mA | 2mA |
Exposure time:0.1-2.0S | 0.1-2.0S |
Frequency:30KHz | 30KHz |
Rated power:60VA | 60VA |
Distance from skin to cone:130mm | 130mm |
Tube focus:0.4mm*0.4mm | 0.4mm*0.4mm |
Battery:DC 14.8V,2200mAh | DC 14.8V,2200mAh |
Output voltage:DC16.8V | DC16.8V |







Through professional online marketing platform and offline medical exhibition and worship business modes, the company has a large number of loyal and strong distribution partners, products have been exported to many countries, the company’s Shoimage brand has gained very good influence
