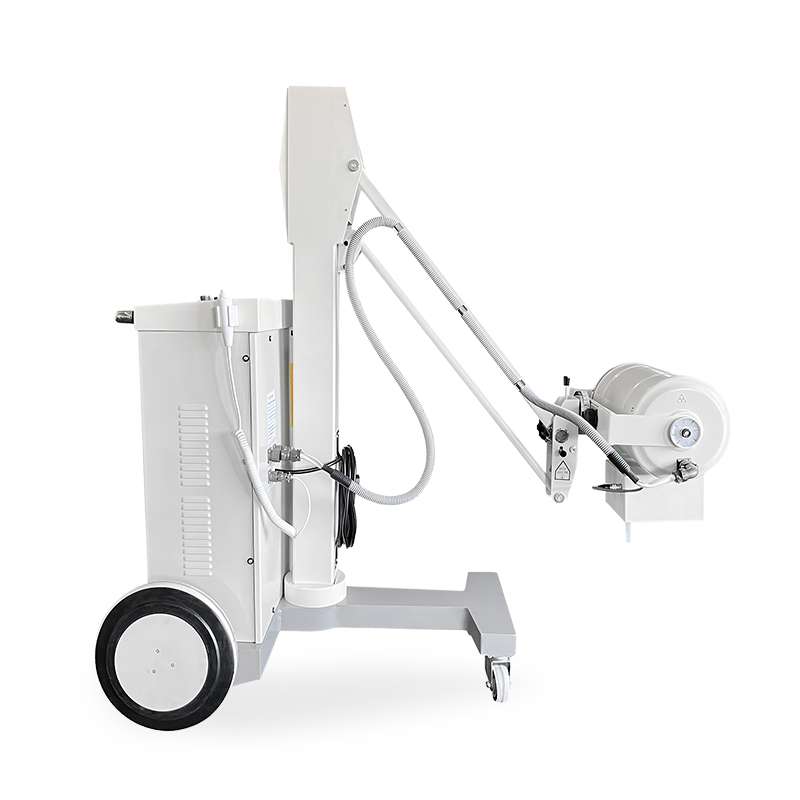

Product Introduction

Main Features:
● Two devices of standard &optional configuration,analog &digital display separately.
● Human-computer interaction interface friendly;control unit is simple and easy to operate.
● Moves flexible,safe and stable,independent and efficient,convenient maintenance.
● Single focus,full-wave rectifier,combined x-ray generator.
·Optional configuration digital  machine with  CLD  back  light  display,microprocessor  of control  circuit, automatic testing and tracking system of supply voltage.
●Premier high voltage with SCR zero passage control circuit,tube assembly temperature protection,load chainsexposure time control,auto alarm,preheat filament,over-voltage &under voltage protection.
●Wireless remote control exposure,radiation exposure acousto-optic indication and overload indication. ●Adopt cantilever framework,third gear safe lock protection device,fixed or rotary column for choice.

1.Power requirements
  Voltage: 180-250V  Frequency: 50Hz   Capacity: 8kw
2.Photography:
Current 16mA 32mA 63mA  100mA
3. Time: 0.08 to 6.3S
4. Maximumermote control distance: 7m
5. X-ray tube focus:4.3*4.3mm
