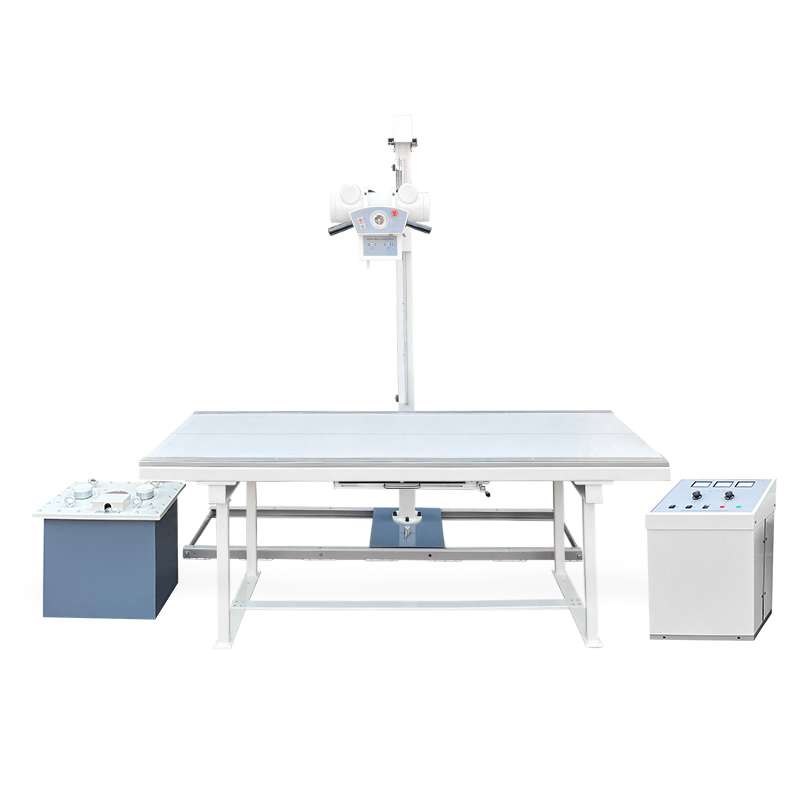

Normal frequency fixed X-ray machine
Normal frequency fixed X-ray machine
Normal frequency fixed X-ray machine
Product Introduction
●Single bed with single tube
●High voltage system is of split structure,with high voltage generator of full-wave rectification,and stable operation.
●Be equipped with the manostat for the filament of x-ray tube and space complementary to ensure the stable and exact output.
● Be equipped with capacity limit protective circuit kV,mA and S interlock limit protection.
●Design according to the electric mechanism of middle-size machine,with complete and reasonable function. ●Power voltage(V),photography kilovolt(kV)and infinitely variable control.
● The photographic flatbed has a vibrating ray-filter.
● The timer circuit grades according to R10 priority coefficient has an exact time control.
● The pillar has only the bottom track,with easy installation.
1.Power supply
Voltage: Not less than 10KVA
Frequency: 50HZ
2.Photography:
Voltage: 50-90 kV
Current 15mA 30mA 60mA 100mA
Time 0.04s ~6.3s
3. Maximum remote control distance: 7m
4. Maximum size of cassette: 35.6cmX43.2cm(14x17inch)
