Product Introduction
RC-C27

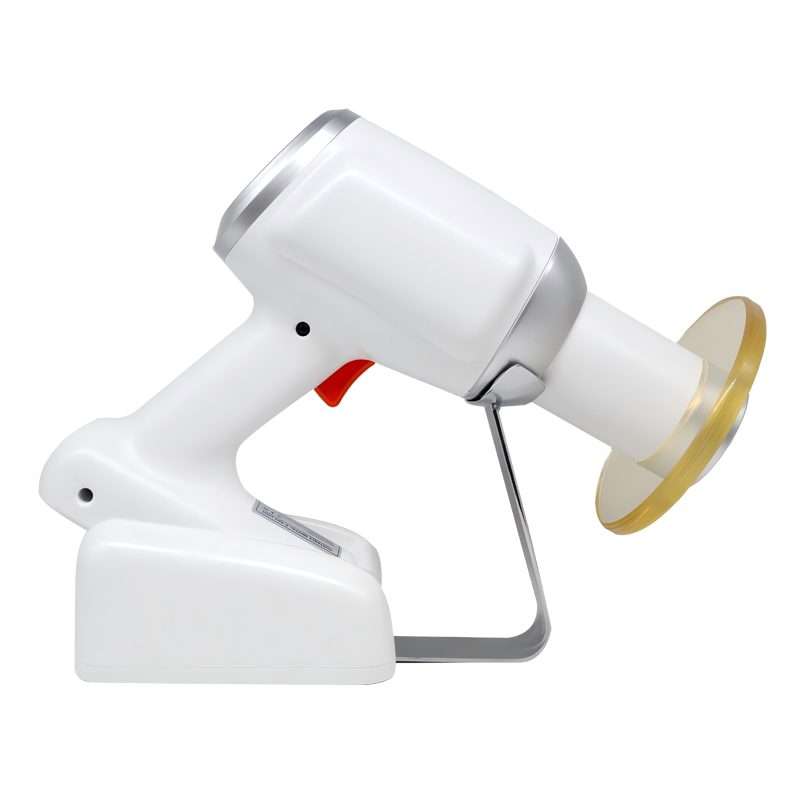

Hand-held portable X-ray unit
This  portable  dental  X-ray  unit  is  high  frequency  machine.The  body  is  small, light  weight  and  nearly  no  radiation.
It  has  excellent  image  quality  ,portable  storage,save  more  space. It  uses  high  frequency  and   DC  international  power  supply.
All  of  the  components  installed  in  the  central  PC  board  concentrated.Shock, set-up,electron  tubes,all  of  them  are   insulation  vacuum   ,sealed  stereotype protection.
There  are  also   manual   buttons  installed  on  the  surface  of  shell,as  well  as batteries  and  charges.
This    unit    mainly    suitable    for    oral     pre-treatment    for    learning    internal organizational  structure,root  depth  and  so  on,is   indispensable   in  daily   lifeclinic   equipment,especially    for   dentalimplant    surgery It also can connect with sensor,is great convenience.
| Tube voltage | 60KV |
| Tube current | 2mA |
| Exposuretime | 0.1-2.0s |
| Frequency | 30KHz |
| Rate power | 120VA |
| Distance from skin to cone | 150mm |
| Tube focus | 0.4mmx0.4mm |
| Battery | 1550mAh |
| Charger input voltage | AC110V-240V |
| Output voltage | DC14.8V-16.8V |
| Ambient temperature | 5℃~40℃ |
| Relative temperature | <75%RH |
| Net weight | 1.7KG |
| Gross weight | 4.0KG |
| Size(mm) | 276*125*235 |
| Package Size(mm) | 420*185*350 |
