Product Introduction

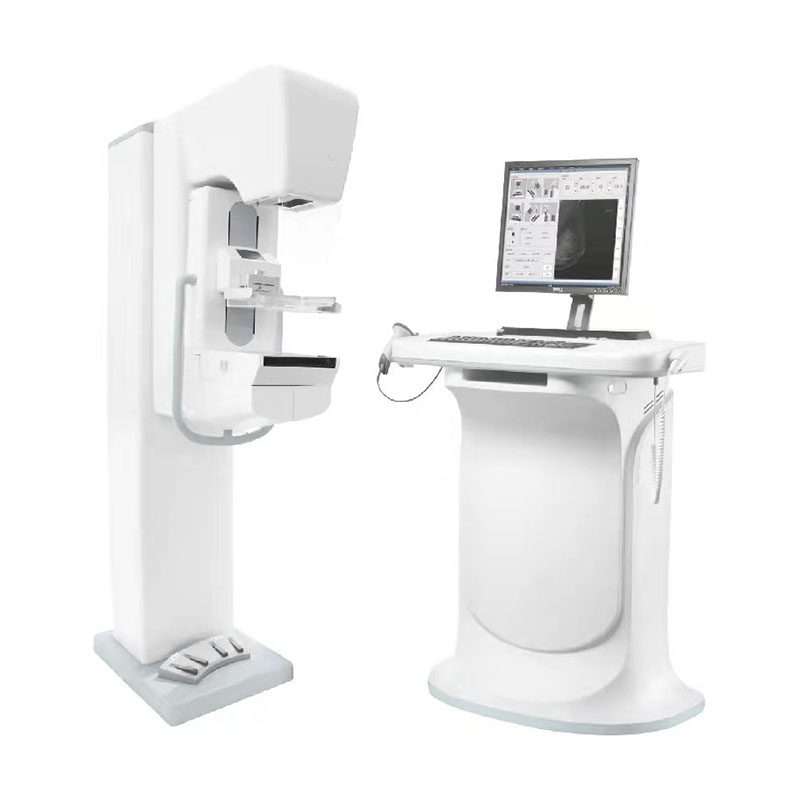

SHO-DMS01 Digital Mammography X-ray
System
Introduction
Digital Mammography System is a professional equipment for breast diseases examination. It is suitable for early detection of mammary gland lesions.
This system adopts the latest technology of flat panel detector, which has a higher sensitivity to X-ray. Its resolution reaches the value of 60lp/cm. It can easily examine calcified lesion less than 0.1mm. By improving the accuracy and sensitivity of mammography diagnosis, it becomes a reliable tool to diagnose early stage of breast cancer.
Features
◆Professional mammography x-ray tube from Italian IAE with molybdenum provides extremely small focus spot, and owns high heat capacity. It guarantees high quality images and long working time.
◆Self R&D 40kHz high voltage generator uses dual-inverter technology, guaranteeing the stability of X-Ray, largely improving the clarity and quality of images with low dose.
◆Unique CMOS flat panel detector provides high-resolution images as it is sensitive to X-ray.
◆Self R&D ‘Console’ software with national patent, provides strong capabilities of post processing. It has leading post-processing algorithm of breast, which could bring you perfect mammary images.
Specifications
Ambient Conditions
| Ambient temperature | 10℃～40℃ |
| Relative humidity | 30％～75％ |
| Atmospheric | 70～106kPa |
X-ray Generator
| Output power | 5.0KW |
| Frequency | 80-200KHZ |
| Current | 10-200mA |
| Voltage | 20-50KV |
| Exposure time | 5-10000s |
| mAs | 0.5mAs-600mAs |
| Self-diagnostic system | Tube overload protection |
X-ray Tube
| Brand | IAE (Italy) |
| Anode type | Rotating Anode |
| Focal spot value | 0.1mm /0.3mm |
| Maximum voltage | 40KV |
| Anode heat storage capacity | 300KHU |
| House heat storage capacity | 426KHU |
| Target material | Molybdenum |
| Anode rotation speed | 10000rpm |
| Maximum anode heat dissipation rate | 500W |
X-ray detector( Iray brand Flat Panel Detector)
| Scintillator | Cesium Iodide |
| Active area | 235*290mm |
| Active pixel | 2762*3408 |
| Pixel pitch | 85um |
| AD Conversion(bit) | 16 |
| Spatial resolution | 60Lp/cm |
Mechanical Device
| SID | 650mm |
| Exposure field | 240mm*300mm(Maximum) |
| Up-down movement of c-arm | ≥600mm |
| Rotational angles of c-arm | -90°～+90°(Electromagnetic lock) |
| Rotational angles of tube | -30°～+30° |
Compression Paddle
| Movement type | Electric |
| Up-down movement range | ≥210mm |
| Size of compression paddle | 260mm*180mm |
| Pressure range | 0～20kg (0.1kg step) |
Workstation
| Monitor | 24’’ LCD AOC brand |
| CPU | ≥2.0GHz |
| Memory | ≥2GB |
| HDD | ≥500GB |
| DICOM3.0 | Query for integration with any PACS |
| Functions | Import/export function |
| Image info | |
| Management of patient info | |
| Post processing | |
| Measurement etc. |
