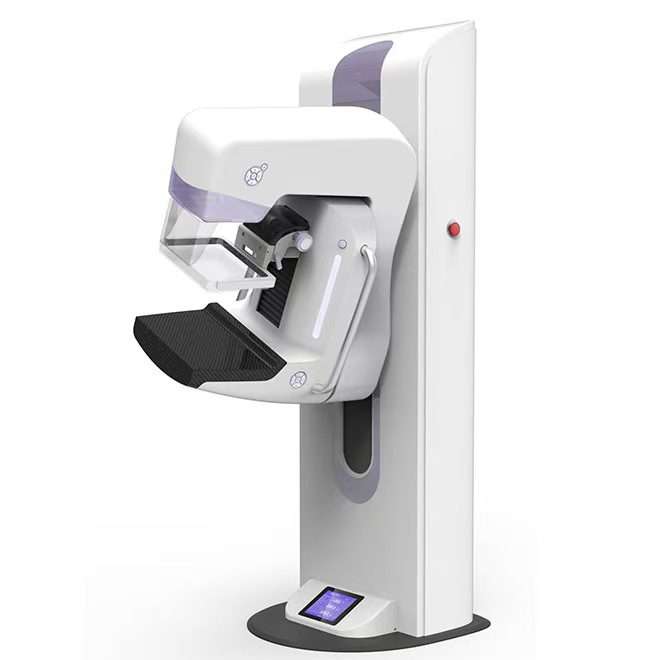

DIGITAL MAMMOGRAPAHY SYSTEM
DIGITAL MAMMOGRAPAHY SYSTEM
DIGITAL MAMMOGRAPAHY SYSTEM
Product Introduction
| Digital Mammography System Specification | |
| SHO-DMS03 Performance parameter table of main components | |
| No. | Parameters and performance |
| 1 | Basic function |
| 1.1 | Application: it is specially used for human breast tissue photography to obtain tissue images for breast disease diagnosis and breast cancer screening; |
| 2 | Rack system |
| 2.1 | Frame structure: vertical C-arm type, |
| 2.2 | C-arm rotation range + 195 ° to – 155 ° |
| 2.3 | Vertical movement range of C-arm: 630mm-1440mm |
| 2.4 | The C-arm can be locked at any position in the whole stroke |
| 2.5 | The rack display screen can display the current position and position information to be photographed, and has the function of one key in place, which can switch the preset position with one key |
| 2.6 | Distance between focus and image receiving surface (FID): 660mm |
| 3 | High voltage generator assembly |
| 3.1 | Maximum output power: 5KW |
| 3.2 | Output voltage range: 20-40kv |
| 3.3 | Output current range: 10ma-160ma |
| 3.4 | Loading time range: 0.005s-10s |
| 3.5 | Current time product regulation range: 0.5-560mas |
| 3.6 | With exposure control system, support one key exposure or hand brake exposure. |
| 4 | X-ray tube assembly |
| 4.1 | Double speed rotating anode |
| 4.2 | Nominal tube voltage: 40kV |
| 4.3 | Anode heat capacity: 300KHU |
| 4.4 | Anode rotating speed: 10000 rpm |
| 4.5 | Anode material: Molybdenum |
| 4.6 | Nominal focus size: small focus 0.1mm, large focus 0.3mm |
| 5 | Flat panel detector Component |
| 5.1 | Imaging medium: amorphous silicon |
| 5.2 | Imaging size: 240mm × 300mm |
| 5.3 | Conventional spatial resolution: 7.0lp/mm |
| 5.4 | Pixel matrix: 2816×3584 |
| 5.5 | A / D conversion: 16 bits |
| 5.6 | Pixel size: 85 μm |
| 6 | Mammography compression device |
| 6.1 | The compression motion control is manual and electric, and the extrusion action can be released at any time during the extrusion process. Occurring power failure, the pressure plate of the compressor can release the pressure. |
| 6.2 | Compression plate movement range: under the ordinary photographic platform, the movement range is 245mm. Under the 1.5 times magnification photographic platform, the movement range is 150mm, and under the 1.8 times magnification, the movement range is 75mm. |
| 6.3 | Compression plate pressure range: with electric drive: 150 ~ 200N; with manual drive: ≤ 300N; |
| 7 | Multifunctional image acquisition and processing integrated workstation |
| 7.1 | Professional medical display, 24 inch |
| 7.2 | Display resolution: 1280 × 1024 |
| 7.3 | Display contrast: 1000:1 |
| 7.4 | Workstation memory: 8g |
| 7.5 | Hard disk capacity: 1T |
| 8 | Workstation software function |
| 8.1 | Independently developed and produced by the manufacturer |
| 8.2 | Real-time monitor high-voltage generator and flat panel detector communication status |
| 8.3 | One-key switch function |
| 8.4 | Support diagnostic report writing with corresponding template; |
| 8.5 | Support DICOM3.0 standard laser camera printing with optional configuration(film size, typesetting) |
| 8.6 | Support DICOM3.0 standard archiving service: archive image to server and automatically send in the background. |
| 8.8 | Compliant with DICOM3.0 standard (DICOM transmission, storage, printing), seamlessly connect with RIS system |
