Product Introduction

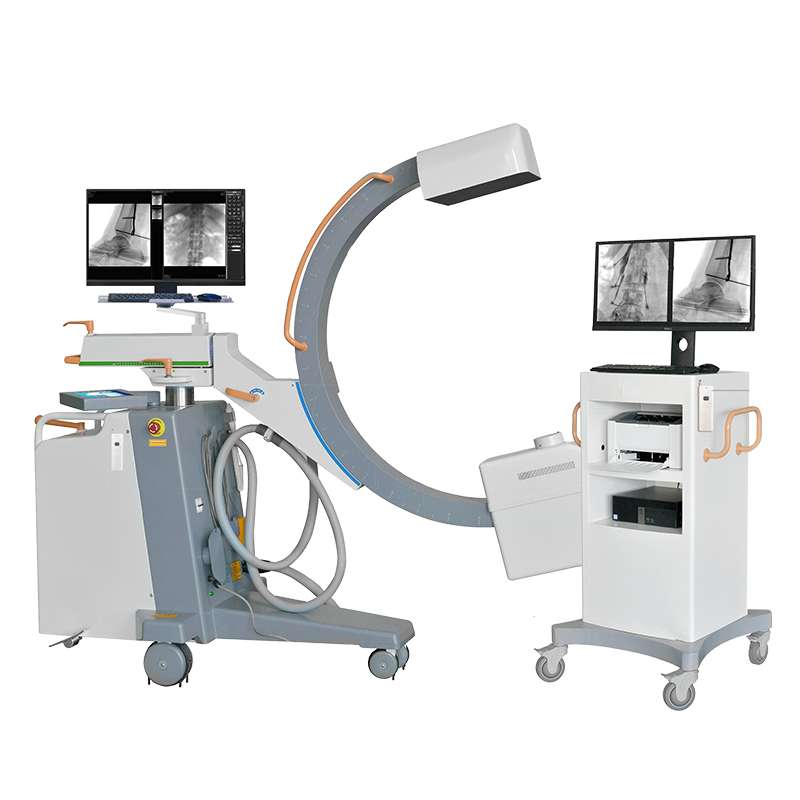

SHOC-CS01 Mobile FPD C-arm X-Ray Equipment
(with laser position)
Application :
Widely use in operating room, X-ray department,emergency room ,intervention and peripheral angiography.
General surgery ,urology, chest surgery,trauma, spine surgery, abdominal surgery, orthopedics ,bone reduction and fixation, endoscopy and surgery.Intervertebral disc angiography and angioplasty .
Key features:
1With HF & HV generator,inverter,and High quality image intensifier, the x ray generator can work stably.It also reduces the damage for the doctors caused by radiation.
2)10.4″LCD friendly interface control board: easy operation and can be rotated to 180°(L90°,R90°) Compared with ordinary key board, our LCD display is not easy to be oxidized Besides, the trouble will be displayed in Chinese, which will improve the efficiency of fault diagnosis.
3)Pulse and boost fluoroscope provides all kinds of size of patients with clear diagnosis.
4)With a steering handle, it can adjust the direction quickly when moving.And parallel movement function is also available.
5) Equipped with unique block line wheels, it can avoid accident when the machine moves.
6)Large free space in arc: the space can reach 800mm,which is convenient for operation.
7)Original Korean linear slide rail can make the the movement of the machine flexibly.
8)Applied with Omron Relay, the noise can be reduced and the life time of the equipment can be increased.
| Main specification | |
| HF generator | 120KV,5kW ,40kHz |
Fluoroscopy mode | Fluoroscopy mode40~120kv0.5~5mA (KV manual and automatic); Pulsd fluoroscopy 40~120kv 0,5-5mA Boost fluoroscopy 40~120kV 5~10mA; Photography 40~120kV 1~250mAs |
| X ray tube | Dual-focus Rotating anode:0.3mm/0.6mm,100mA Thermal capacity：800KHU Italy IMD Technology |
| Detector | France Trixell Plate:single A-Si TFT+photodiode plate Scintillator: Csl Total transmitted image width: 1024(1344 optional) Total transmitted image height: 1024(1344 optional) Pixel pitch: 154 Quantization depth: 16 Power supply input: 24±10% Communication/ image transfer: Ethernet cable |
| The main feature of the detector are: Cold start feature Offset stability validity up to 10 minutes Fluoroscopy and RAD images capability Passive cooling device High speed image transfer using Ethernet link | |

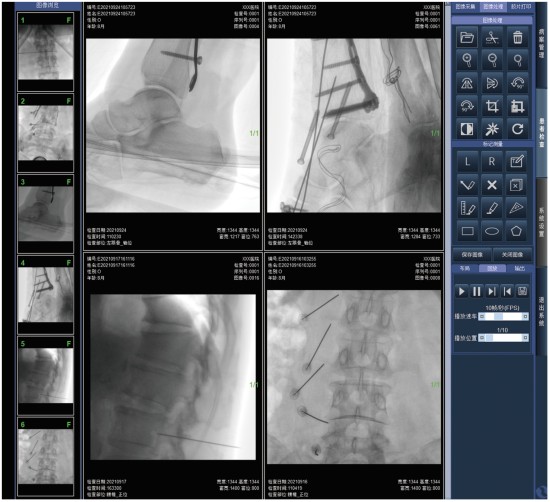

Image system | 5 Degree recursive Noise Reduction Frame freezing Thousands of image data storage Image conversing and rotating Screen display with image comparison Support “one click” print,print the image report Equip with Dicom 3.0 network port Support Dicom 3.0standard data export function DAP (optional) |

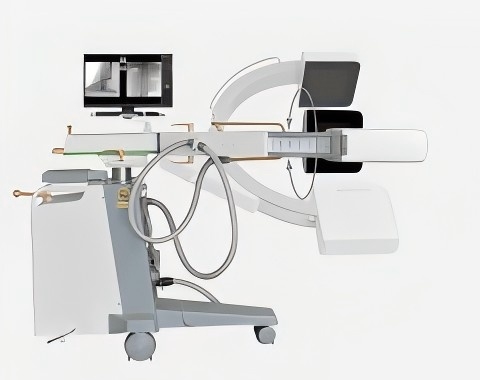

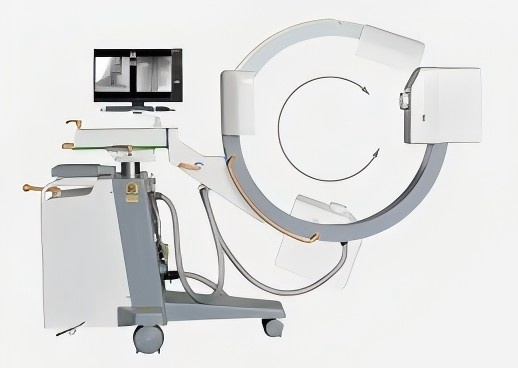

| Mechanical motion specifications （electric optional） | Verticaltravel:0-400mm(electric) Horizontaltravel:0~200mm(electric optional) Rotation about horizontal axis:±180°(electric optional ) Slipping along the circular arcrail (electric optional) |
C-arm dimension | Distance of focal spot to image generator(SID):1000mm Depth in arm≥650mm Mobile stand :1800mm*800mm*1850mm Image system: 750mm*530mm*1680mm |
Standard configuration | Detector :1set x-ray generator:1set image processor 24” LCD high definition display 1 set Mobile stand :1 set Printer: 1set |
II Standard Configuration
| NO. | PICTURES | DESCRIPTION |
1 |  | With HF & HV generator,inverter, the x ray generator can work stably. It also reduces the damage for the doctors caused by radiation. |

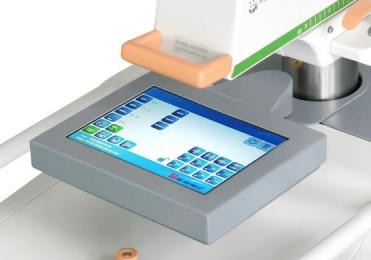

2 |  | 10.4″LCD friendly interface control board: easy operation and can be rotated to 180° (L90°,R90°) Compared with ordinary key board, our LCD display is not easy to be oxidized Besides, the trouble will be displayed in English, which will improve the efficiency of fault diagnosis. |
3 | With a steering handle, it can adjust the direction quickly when moving.And parallel movement function is also available. | |

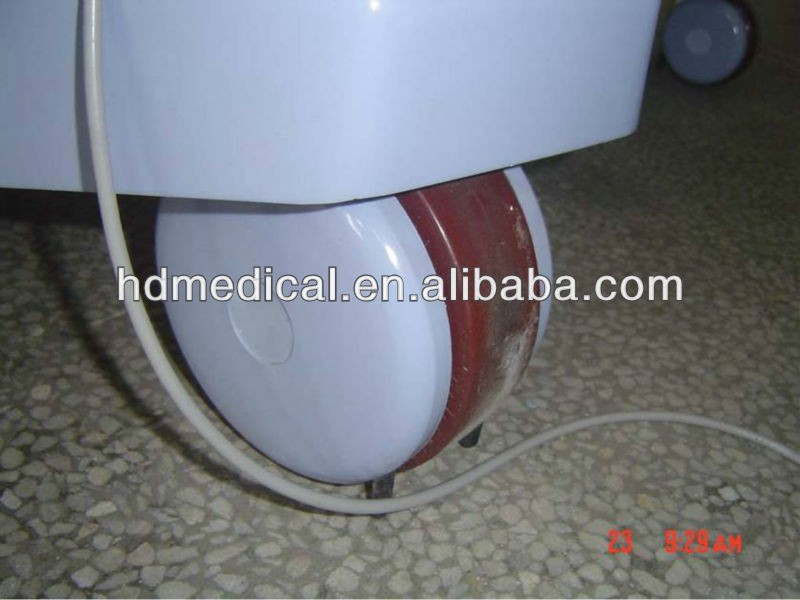

4 |  | Equipped with unique block line wheels, it can avoid accident when the machine moves. |

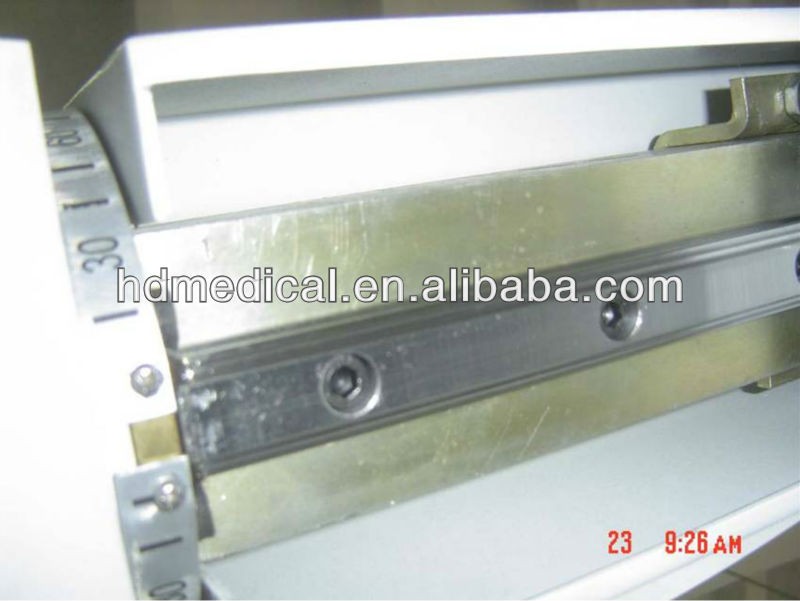

5 |  | Original Korean linear slide rail can make the movement of the machine flexibly. |

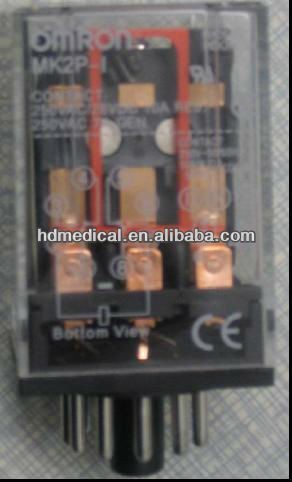

| 6 |  | Applied with Omron Relay, the noise can be reduced and the life time of the equipment can be increased. |
| 7 | Pulse and boost fluoroscope provides all kinds of size of patients with clear diagnosis. | |

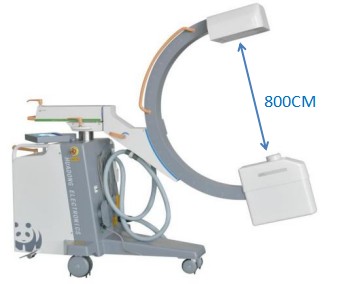

| 8 | Large free space in arc: the space can reach 800mm,which is convenient for operation. | |

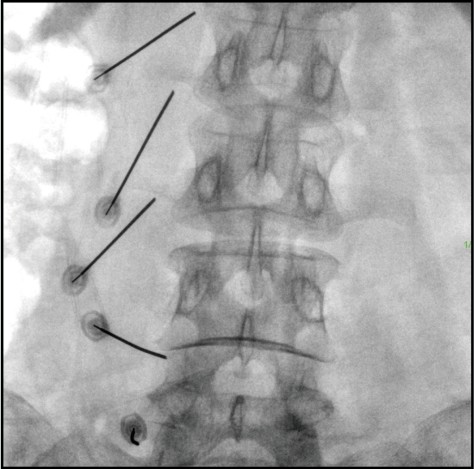

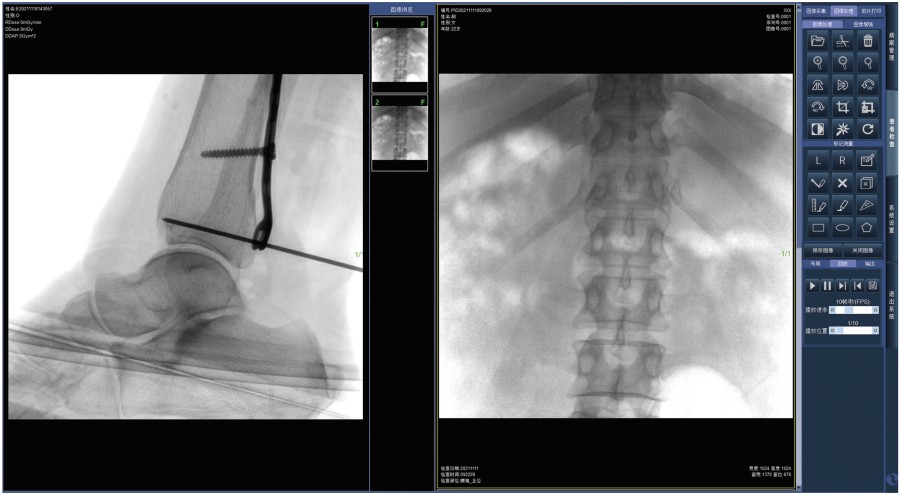

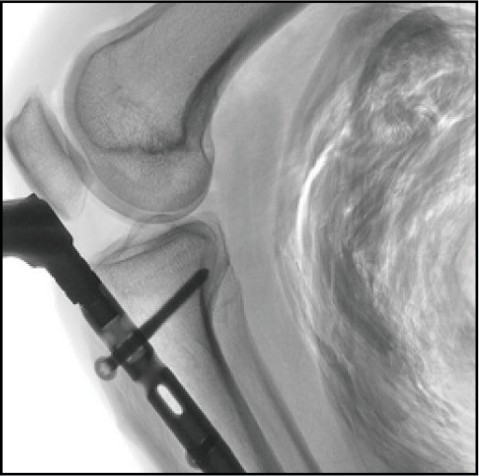

Clinic Image
Ⅳ. Others
Dimension: Two cases: A) 252×93×174cm B) 90×80×140cm GW:500KG
Delivery time: about 15 days
Payment terms: T/T
Warranty time: one year
Shipping mode: By air or sea
